Wheels Mfg
Bottom Bracket Bearing Extractor Pro Kit
Bottom Bracket Bearing Extractor Pro Kit
Regular price
$133.32 USD
Regular price
$202.00 USD
Sale price
$133.32 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

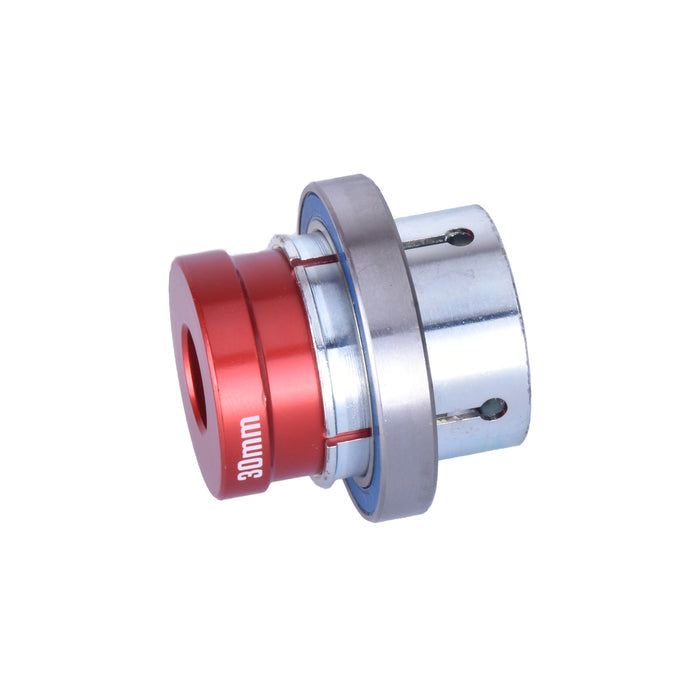

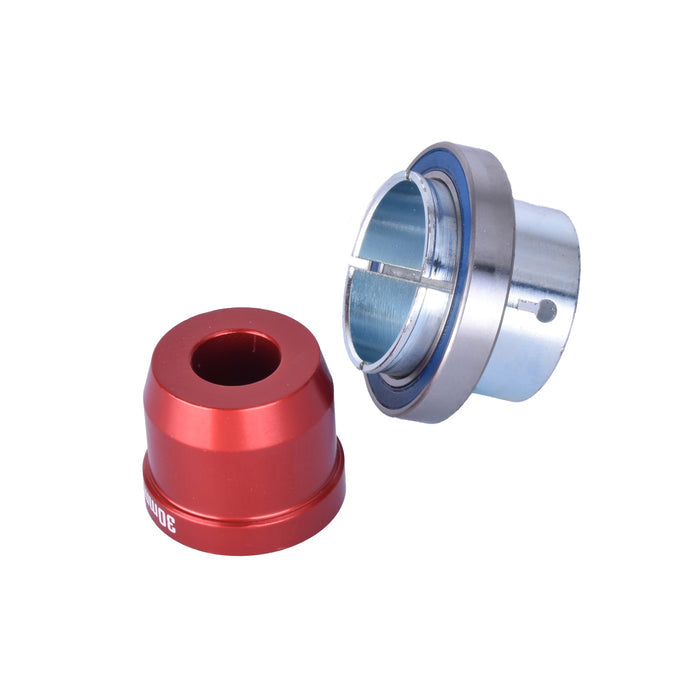

Bearing extractors set for pushing out 22mm, 24mm, 29, and 30mm ID sealed bearings from bottom bracket cups. Compatible with our 1/2" threaded press rod and handles (BP0006 and BP0007).

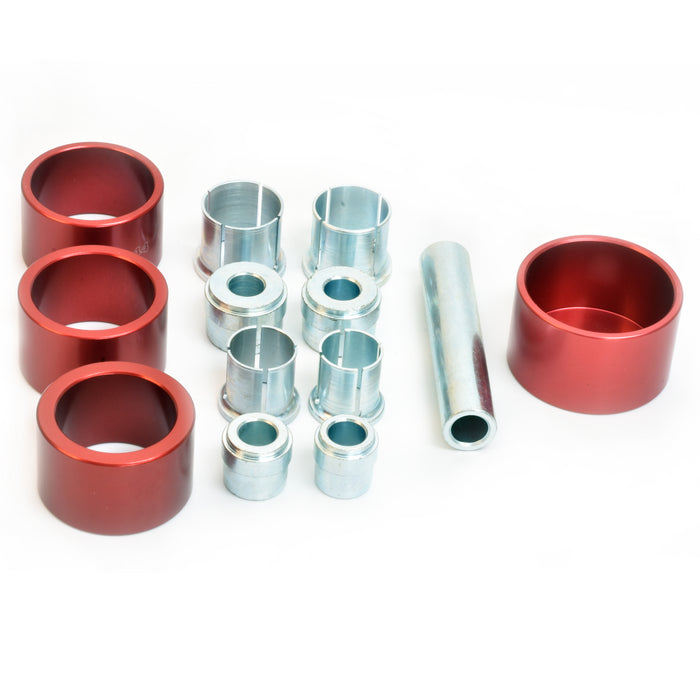

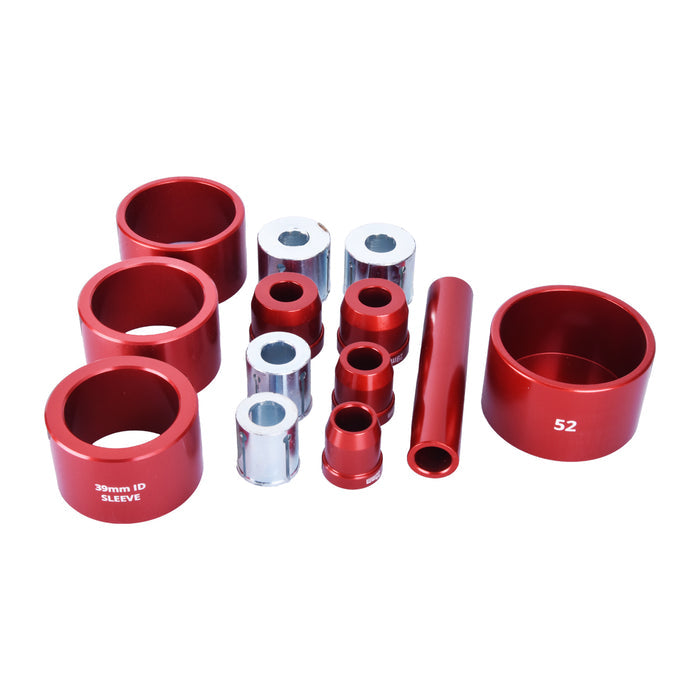

Includes
- (1) 30mm ID sealed bearing extractor
- (1) 29mm ID sealed bearing extractor
- (1) 24mm ID sealed bearing extractor
- (1) 22mm ID sealed bearing extractor
- (1) 52mm receiver cup
- (1) 44mm receiver cup sleeve
- (1) 42mm receiver cup sleeve
- (1) 39mm receiver cup sleeve
- (1) bearing pusher shaft
Extractors for 25mm ID bearings available separately:
- BE-25MM-SET
You can also use the chart below to identify the individual parts needed for each bearing size.
|
Part (One of each required) |
22mm ID Bearings | 24mm ID Bearings | 25mm ID Bearings | 29mm ID Bearings | 30mm ID Bearings |
| Bearing Extractor | BE-22MM-SET | BE-24MM-SET | BE-25MM-SET | BE-29MM-SET | BE-30MM-SET |
| Pusher Rod | BE-PUSHER | BE-PUSHER | BE-PUSHER | BE-PUSHER | BE-PUSHER |
| Receiver Cup | RC-52 | RC-52 | RC-52 | RC-52 | RC-52 |
| Cup Sleeve | SLEEVE-39 | SLEEVE-39 | SLEEVE-39 | SLEEVE-42 | SLEEVE-42 |
| Press Kits / Rod* Not included with EX0004 |
BP0006 or BP0007 |
BP0006 or BP0007 |
BP0006 or BP0007 |
BP0006 or BP0007 |
BP0006 or BP0007 |
